Brand Name : | Genron |
Model Number : | GV011094 |
Price : | FOB Qingdao 600-660USD one piece |
Payment Terms : | L/C, T/T |
Supply Ability : | 100000pcs per year |
Delivery Time : | 15 -20 work days |
Certification : | ISO/TS16949 |

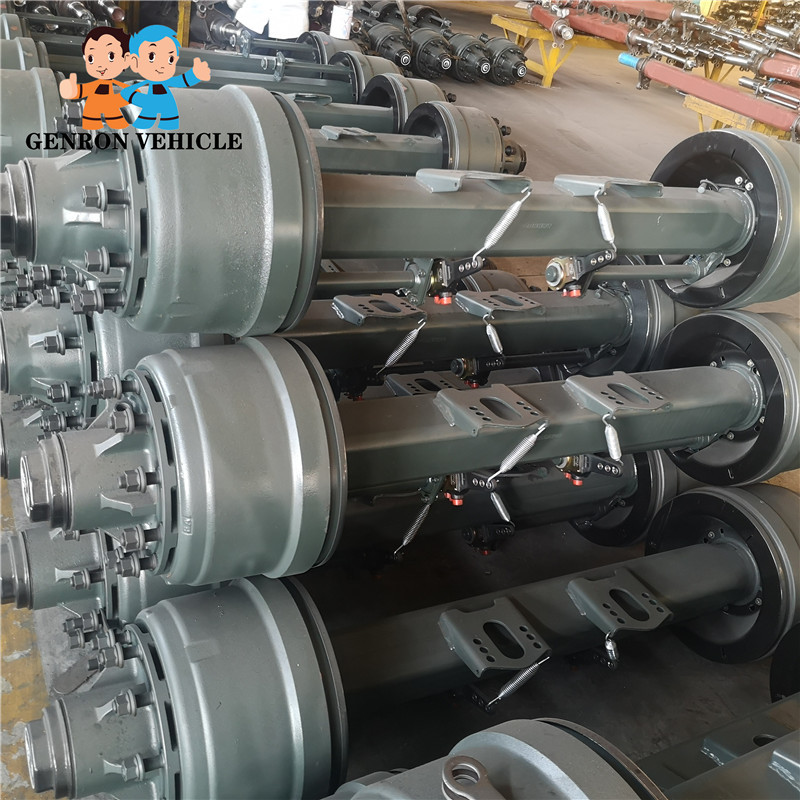

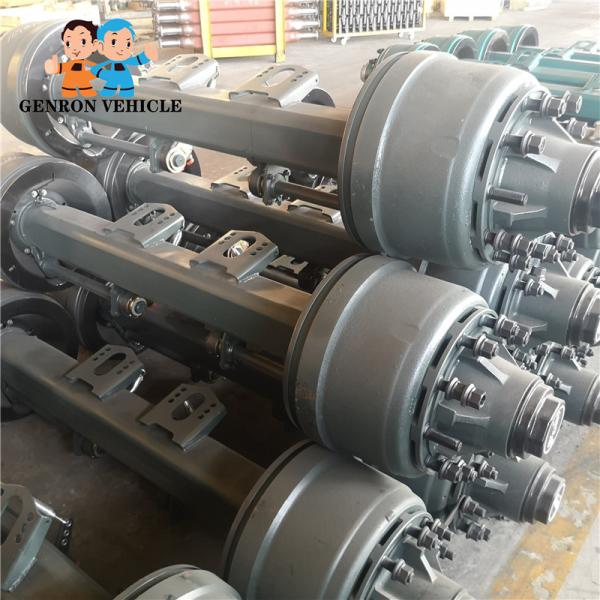

16t 20t Truck Trailer Axles with China Famous Brand Rolling Bearing and High Quality Brake Drum
Axle Type | Max Capacity (T) | L2 Wheel Distance(mm) | Brake (mm) | Bearing | L3 (Distance between center of Spring seat) | Axles Tube | L4 Center Distance of Brake Chamber(mm) | Wheel Fitting | L1 Outer Length (mm) | Rim Size | Weight (KG) | ||
BOLT | P.C.D (mm) | H (mm) | |||||||||||
FA13YA1227 | 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20 9.0-22.5 | 360 |
FA13YA1327 | 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 382 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20 9.0-22.5 | 342 |
FA13FA1227 | 13 | 1840 | 420×180 | HM518445/10 | ≥930 | 150 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20 9.0-22.5 | 358 |
FA13FA1327 | 13 | 1840 | 420×220 | HM518445/10 | ≥930 | 150 | 350 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20 9.0-22.5 | 340 |
FA16YA1329 | 16 | 1850 | 420×220 | HM220149/10 HM518445/10 | ≥980 | 127 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 362 |
FA16FA1329 | 16 | 1850 | 420×220 | HM220149/10 HM518445/10 | ≥940 | 150 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 388 |
FA20FA1429 | 20 | 1850 | 420×220 | 32222 HM518445/10 | ≥940 | 150 | 345 | 1O×M24×1.5ISO | 335 | 280.8 | 2247 | 8.5V-20 | 430 |
1. Track length is optional;
2. Axles is available with ABS according to customers' needs.
If you only buy spare parts ,Our engineer can go to your factory to teaching your empolyee how to assembly the products ! |
Tensile length 250mm, tensile times 80000times. Strict Testing. |
Full test before shipment.
We keep moving every day,improve of our technology ,devolope new products to satisified more customers' demand.
