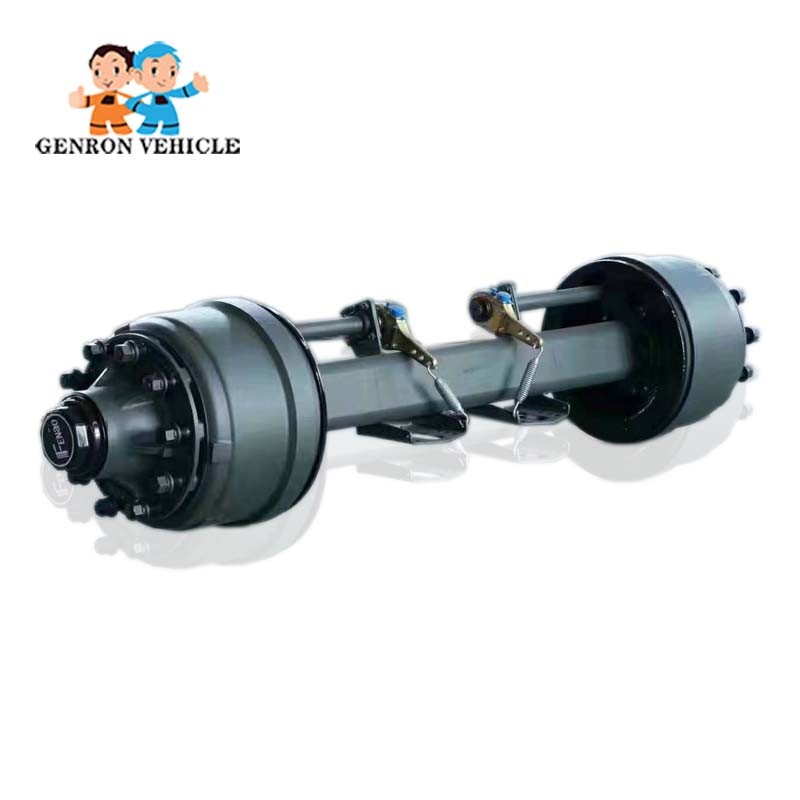

127mm 150mm Round Square Beam Trailer American Type Axle Assembly
1. China manufacture of trailer axles with high quality and good
service.
2. The Logo can be customized.
3. We have our own casting production line, brake drum , hub, brake
shoe and other parts produced by our own factory.
4.Tensile length 250mm, tensile times 80000times.
Factory directly sale and we believe we can offer high quality and
lower price products to you.
Max Capacity
(T) | L2 Wheel
Distance (mm) | Brake
(mm) | Bearing | L3
(Distance between center of Spring seat) | Axles
Tube | L4 Center Distance
of Brake Chamber (mm) | Wheel Fitting | L1 Outer
Length
(mm) | Rim Size | Weight
(KG) |
| BOLT | P.C.D
(mm) | H
(mm) |
| 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20
9.0-22.5 | 360 |
| 13 | 1840 | 420×180 | HM518445/10 | ≥970 | 127 | 382 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20
9.0-22.5 | 342 |
| 13 | 1840 | 420×180 | HM518445/10 | ≥930 | 150 | 388 | 1O×M22×1.5ISO | 285.75 | 219.8 | 2180 | 7.5V/8.0-20
9.0-22.5 | 358 |
| 13 | 1840 | 420×220 | HM518445/10 | ≥930 | 150 | 350 | 1O×M22×1.5ISO | 335 | 280.8 | 2180 | 7.5V/8.0-20
9.0-22.5 | 340 |
| 16 | 1850 | 420×220 | HM220149/10
HM518445/10 | ≥980 | 127 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 362 |
| 16 | 1850 | 420×220 | HM220149/10
HM518445/10 | ≥940 | 150 | 350 | 1O×M24×1.5ISO | 335 | 280.8 | 2200 | 8.0V-20 | 388 |
| 20 | 1850 | 420×220 | 32222
HM518445/10 | ≥940 | 150 | 345 | 1O×M24×1.5ISO | 335 | 280.8 | 2247 | 8.5V-20 | 430 |
1. Track length is optional;
2. Axles is available with ABS according to customers' needs.
Full test before shipment.
We keep moving every day,improve of our technology ,devolope new
products to satisified more customers' demand.
